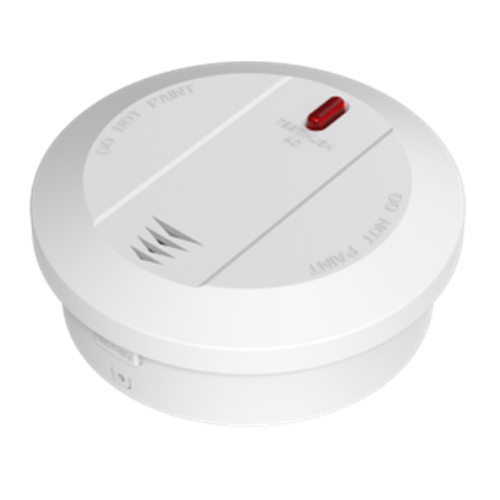

Current Location: HomeFreestanding photoelectric smoke alarm

LZ-1907B

Product Model:

    LZ-1907B

Product Characteristics:

    Photoelectric chamber of early detection from all directions; AC 240V with DC 9V battery backup; Operate as Single or Inter-connect up to 24 units; Surface mount base plate with large cable terminals; Red LED Alarm Status indication; Green LED AC Mains Power Indication; Low Battery signal; Insect Screen protects Sensing Chamber; Suitable for ceiling or wall mounting.

Authentication:

  • Buy Now
    • Product Introduction
    • Technical Parameter
    • Product Size
    • Order Model
    • Document Download
     Model No. LZ-1907B
     Standard AS3786:2014
     Voltage AC 240V with DC 9V battery back up
     Standby Current ¡Ü10uA
     Alarm Current ¡Ü50mA
     Sensor Type Photoelectric
     Temperature -10¡æ~+55¡æ
     Ambient Humidity ¡Ü95%R.H
     Hush time8~9min
     Product life10 years
     Alarm indication Red LED & Buzzer
     Sound pressure ¡Ý85dB(around 3m)
     Weight ¡Ö214g
     Product size ¦µ120*43mm
     Installation wayWall or ceiling mounting


    Applicable Scenario

  • warehouse shop school office building market hotel hospital family factory

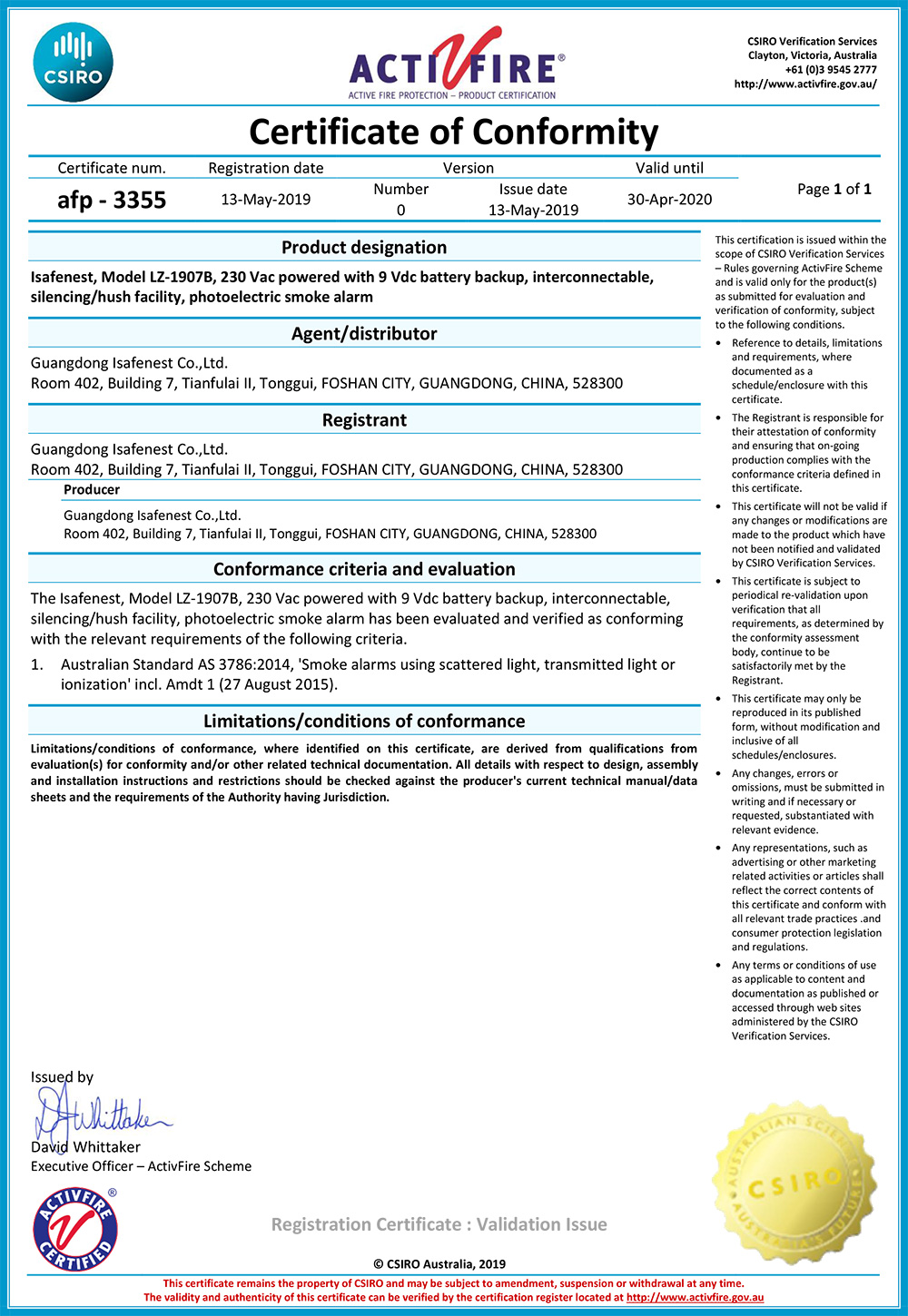

    • Qualification Certificate
